Vehicle Camera Monitoring System High definition car mounted 7 - inch VGA monitor display

We are a professional manufacturer of research and development production and vehicle monitoring

Car video recorder car camera car usb camera car display usb camera

Please contact us by email : firecore1688@163.com

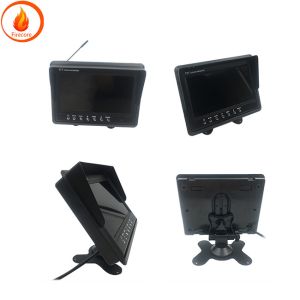

Product Name : 7 - inch Desktop Display Input Configuration with Two Video Inputs Priority for Reverse
Appearance size 174 * 114 * 20mm Language Chinese English
7 - inch display screen remote operation mode
Screen ratio 16 : 9 color standard PAL / NTSC automatic switching
Resolution 800 * 480 standby temperature - 20 to+75 degrees Celsius
Remote control supports remote control working temperature from - 10 to + 50 degrees Celsius
Rated power of approximately 6W power supply DC 12 - 24V

The camera power ground wire and video ground wire are directly connected to the vehicle body The above two methods can solve the problem by 99% If there are still a few water ripples you can refer to the next method and add RC or LC filtering circuits Add a filtering circuit (without adding a relay) This method involves adding a filtering circuit to the power line of the reversing light filtering the pulse power supply to form a DC power supply and then supplying power to the camera This can completely eliminate the interference of horizontal stripes on the screen

Purchasing Advantage Broadcast Editor

1 : Chip CCD and CMOS chips are important components of the reverse camera which can be divided into CCD and CMOS according to different components CMOS is mainly used in products with lower image quality Its advantages are lower manufacturing cost and power consumption compared to CCD but its disadvantage is that CMOS cameras have higher requirements for light sources CCD is a high - end technology component used in photography and videography which also comes with a video capture card CCD and CMOS have a significant difference in technology and performance Generally speaking CCD has better performance but it is also more expensive It is recommended to choose a CCD camera without considering the cost

2 Clarity is one of the important indicators for measuring cameras Generally speaking if the camera has high clarity the quality of its image display will be better How to choose a high - definition camera It is recommended to judge based on the level of the camera chip Generally different chip levels different photosensitive components and the level of debugging technicians may result in different effects for products of the same chip and level On the contrary products with high clarity may have some discount on night vision effects The reverse camera usually uses a number of lines to distinguish the clarity such as 420 lines 480 lines 500 lines 580 lines 600 lines etc

3 The higher the clarity of night vision, the worse the night vision effect of the product as the night vision effect is also related to the clarity of the product Generally high - quality products have night vision function and will not affect the presentation effect Generally night vision refers to those with infrared or white LED lights while those without infrared lights can only be said to have good low illumination and better imaging results under the same lighting conditions

4 , Waterproof reversing cameras generally have waterproof functions which can better protect the camera and extend the lifespan of the reversing camera

5 , Both shock and dust resistant reversing cameras have shock and dust resistant functions

Shenzhen Firecore Technology Co., Ltd., has been established for more than 15 years, is a focus on vehicle video image surveillance products research and development, manufacturing, and sales of national high-tech enterprises. With a strong R & D team and its patented products, Firecore has been a strong supplier of commercial vehicle enterprises at home and abroad and will be committed to becoming a strong supplier of commercial vehicle enterprises around the world for a long time.

Professional and Product Diversity: Firecore not only manufactures and develops in-vehicle video surveillance products but also covers closed-circuit surveillance equipment such as CCTV cameras, as well as a series of cameras and surveillance video recorders designed for different vehicles (such as buses, school buses, trucks, and taxis). In addition, Firecore also provides advanced automotive safety products such as in-car wifi, 3G/4G/5G cameras, as well as reversing systems, displays, and rear-view systems, showing the diversity and professionalism of its products.

Technological Innovation: Firecore emphasizes "Innovation! Originality! High-end customization!" as part of its core competence. Therefore, we invest a lot of resources in scientific and technological research and innovation to provide products with unique and high-end performance.

R&d, Production, Sales, and Service Integration: Firecore integrates product R&D, production, sales, and service, forming an integrated business model. This model helps us better grasp the market demand, respond quickly to customer needs, and provide a full range of services.
