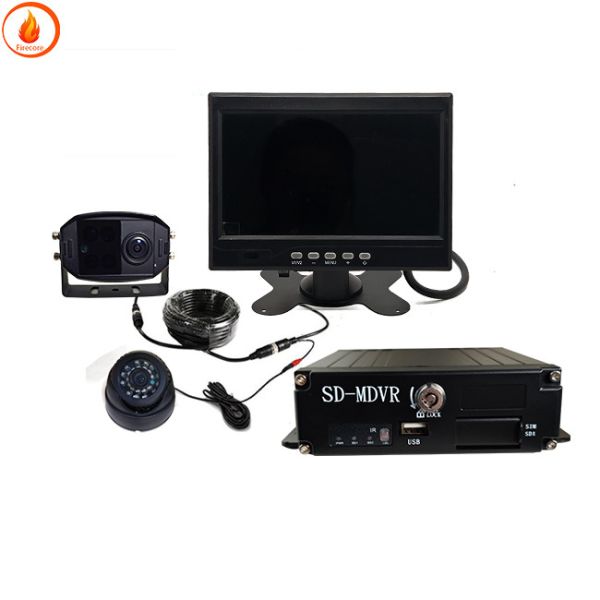

Vehicle Camera Monitoring System 24V truck night vision reverse image 7 - inch display for on - board monitoring

Adopting 2.5 - inch pluggable hard disk storage and supporting SD / SDHC card interfaces
Built in 3G wireless network transmission module supporting international wireless network communication standards
Built in GPS positioning module to locate and record vehicle position and speed information
Supports G - sensor function which can record driving behavior information
Equipped with ignition start delayed shutdown and timed on / off functions
Provide a dedicated onboard wireless remote monitoring platform
Compression processing function
Supports 4 - way PAL / NTSC standard video signal input adopts H.264 video compression technology not only supports variable bit rate but also variable frame rate can set video image quality and can also set the compressed bit stream of video images
The device can achieve independent hardware compression of 4CIF DCIF 2CIF CIF and QCIF resolutions per channel
Supports 4 audio signals with independent real - time compression of audio signals using OggVorMis audio compression standard with a compression rate of 16kbps
After compressing the video and audio signals a composite H.264 bitstream is generated When playing back the bitstream the video and audio remain synchronized and a single video stream can also be set
Supports dual stream technology with separate settings for local storage and wireless network transmission
Support dynamic setting of video parameters
Supports OSD and logo
Local processing function
There are multiple modes for file recording : timed recording manual recording command triggering alarm recording etc
Using a hard drive for storage
The storage device file type is FAT32 format
Freeze protection technology for storage devices ensures the security of critical data
Storage device space pre allocation technology and low seek technology extend the service life of storage devices
Support local storage device SMART technology
The files on the storage device can choose between cyclic and non cyclic recording
Provide backup and editing of video materials supporting USB 2.0 protocol. Preview and replay
Support partial or complete image masking
Support partial or complete image occlusion alarm processing
Support playback modes such as fast playback slow playback and single frame playback and retrieve by recording type and time
Local recording status and alarm status display
