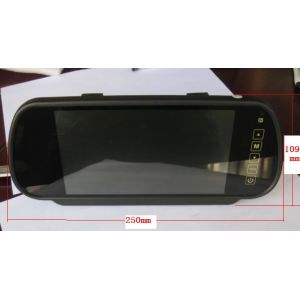

Vehicle Camera Monitoring System 7 - inch rearview mirror display

The 7 - inch rearview mirror display supports a wide voltage range of 12 - 40V . The aircraft head input is in standby mode and does not provide power to the camera
7 - inch high - definition rearview mirror display
Pixel : 800 * 480
Display ratio : 16 : 9/4 : 3
Brightness : 300cd / m2
The menu can adjust brightness contrast color display ratio language etc
Supported format : PAL/NTSC
Working voltage : DC12V-40V
Power : approximately 7W
2 - way signal input reverse priority function (requires contact with the transmission line)
Aviation head connector special power design does not supply power to the camera in standby mode extending the lifespan of the camera
Remote control and touch button control
Universal design that can be stuck on the original car rearview mirror

Performance specifications :
Display size

7 "TFT (16:9 widescreen)
Display Color
65536 color
resolving power
eight hundred × 480 pixels
Backlight type
LED
Brightness
320cd/m2
LCD lifespan
50000 hours
Touch Panel
4 - wire precision resistance network (surface hardness 4H)
CPU
800MHz RISC
storage
128MB flash memory + 64MB memory
RTC&Recipe Memory
512KB + real - time clock
Scalable Memory
1 USB Host (≤ 16G)+1 SD Card (≤ 32G)

Printing interface
USB Host/Slave/Serial Port
Ethernet
support
Program Download
USB/Ethernet/Serial
communication interface
COM0 : RS232/RS485-2/4 COM1 : RS232/RS485-2/4 COM2 : RS232

Electrical specifications :
Isolation power supply unit
built - in
Rated power
5.5W
Rated voltage
DC24V
Input Range
DC21V~DC28V
Allow power loss
<5ms
insulation resistance
Over 50M Ω @ 500V DC
Voltage resistance performance
500V AC for 1 minute
Li Yan :
Structural specifications:
Shell color
black
Shell material
ABS plastic
External dimensions
three hundred and ten × two hundred and thirty × 55mm
Installation hole size
two hundred and ninety-eight × 218mm
Weight
1.47 Kg

Environmental specifications :
working temperature
0-50 ℃
Working humidity
10-90% RH (non condensing)
Storage temperature
-10-60 ℃
Storage humidity
10 - 90% RH (non condensing)
Seismic resistance
10 - 25 Hz (2G/30 minutes in X Y Z directions)
Cooling method
Natural air cooling

Shenzhen Firecore Technology Co., Ltd., has been established for more than 15 years, is a focus on vehicle video image surveillance products research and development, manufacturing, and sales of national high-tech enterprises. With a strong R & D team and its patented products, Firecore has been a strong supplier of commercial vehicle enterprises at home and abroad and will be committed to becoming a strong supplier of commercial vehicle enterprises around the world for a long time.

Professional and Product Diversity: Firecore not only manufactures and develops in-vehicle video surveillance products but also covers closed-circuit surveillance equipment such as CCTV cameras, as well as a series of cameras and surveillance video recorders designed for different vehicles (such as buses, school buses, trucks, and taxis). In addition, Firecore also provides advanced automotive safety products such as in-car wifi, 3G/4G/5G cameras, as well as reversing systems, displays, and rear-view systems, showing the diversity and professionalism of its products.

Technological Innovation: Firecore emphasizes "Innovation! Originality! High-end customization!" as part of its core competence. Therefore, we invest a lot of resources in scientific and technological research and innovation to provide products with unique and high-end performance.

R&d, Production, Sales, and Service Integration: Firecore integrates product R&D, production, sales, and service, forming an integrated business model. This model helps us better grasp the market demand, respond quickly to customer needs, and provide a full range of services.
