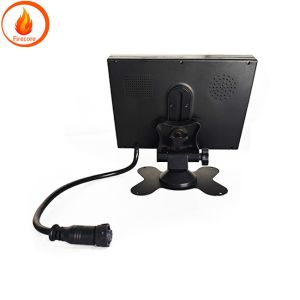

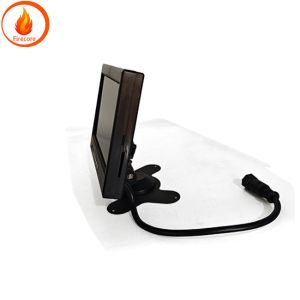

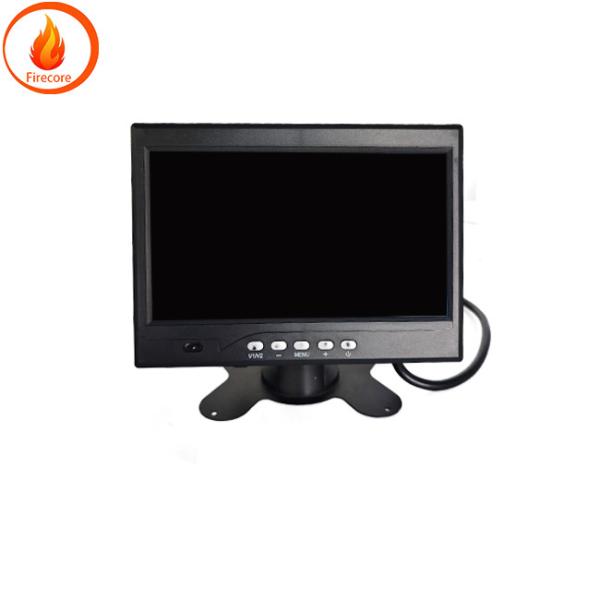

Car Wifi Monitor 7 - inch high - definition LCD 1024 * 600 display screen car monitor

Exclusive private model patent
◆ Simple and stylish body foldable bracket design lightweight and portable
◆ Adopting 7 - inch high - resolution (1024) × 600) TFT LCD screen with clear and delicate images and bright colors
◆ Support BNC input for professional safety monitoring equipment connection reducing signal interference and achieving good signal performance ( Most basic models on the market only have two AV channels and no BNC function )
◆ Supports AV input and can connect to video playback such as DVDs
◆ Support audio input, built - in speaker (optional ) ( When the built - in speaker is installed the body has four wires as shown in the picture (yellow BNC yellow AV white audio red DC power) When the speaker is not installed the body has three wires namely yellow BNC white AV and red DC power )
◆ Support image flipping control to adapt to different installation methods
◆ Equipped with timed on / off and automatic signal standby function

Product detailed parameters:
◆ Panel size : 7 - inch display screen
◆ Video input : Flat 1Vp - P CVBS
◆ Ratio : 16 : 9
Resolution : 1024 x 600
◆ Effective display area : 154 points ˉ X86 mm
◆ Visual angle : 120 ° (H) / 100 ° (V)
◆ Panel lifespan : 10000 hours
Brightness : 250 cd/m2
◆ Contrast ratio : 300 : 1
Response time : 12ms
◆ Power input : DC12V - 400mA
◆ Power mode support : power adapter
Adjustable bracket :
◆ Horn : 1W (maximum) * 1
◆ OSD menu language selection : English Simplified Chinese
Temperature range (working) : 0 - 40 degrees Celsius

We are a professional manufacturer of research and development productio and vehicle monitoring

Car video recorder car camera car usb camera car display usb camera

Please contact us by email : firecore1688@163.com

Method / Step : First take out the machine and debug it The position of the front camera is fixed with screws and does not require drilling The position of the rear camera is the same as the installation process of the front camera Install the left camera under the rearview mirror drill a hole with an electric drill and fix it in place

There are two installation positions for the rear camera of the driving recorder : one is installed on the license plate lampshade and the other is installed on the rear glass inside the car There are generally two ways to correctly operate the rear view camera of a driving recorder and the

installation method is also different One is installed on the license plate lampshade which is waterproof and can also be used as a reverse image
