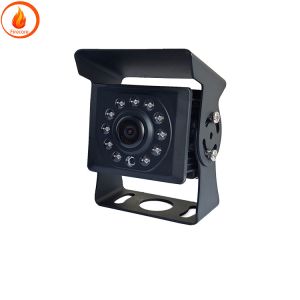

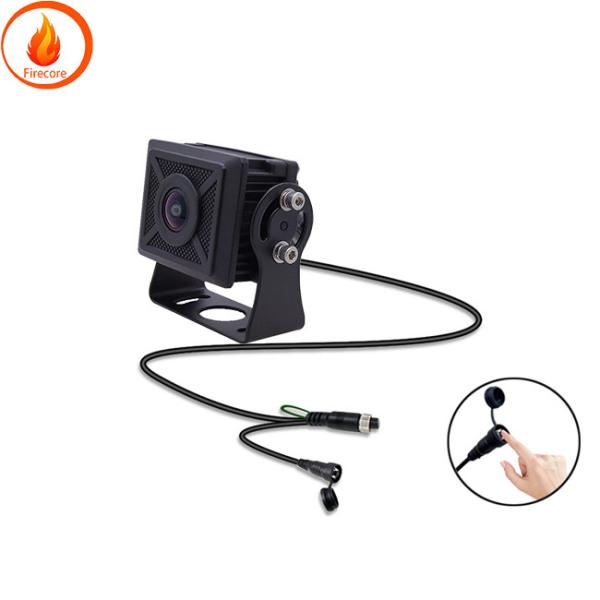

Truck Security Cameras Truck reverse image monitoring 12V24V high - definition night vision

Product parameters

Technical indicators and parameters

Image processor with high resolution supports 1920 * 1080P

Cold start less than 34 seconds Hot start less than 3.5 seconds Warm start less than 33

Positioning module

Second capture time 1.0 second tracking sensitivity 159dBm

Motion detection accelerometer

Video active recognition

Algorithm equipment obstructs twisting and detects abnormal entry within the range

Remote OTA supports remote upgrades (different models have different upgrade paths)

The storage medium comes standard with an industrial grade TF storage card with expandable capacity up to 64G

485 interface universal peripheral interface

LED indicator lights work indicator upgrade indicator etc

Power supply mode onboard 12VDC/24VDC external power supply

Working voltage DC9 - 36V

Working temperature -30 ℃ -+70 ℃

Storage temperature -40 ℃ (-5) -+80 ℃ (+5)

Power consumption : 219mA with infrared on 162mA without infrared on

Dimensions without bracket : 73 * 77 * 53mm, with bracket: 73 * 79.6 * 71mm

Wifi antenna size 50 * 16.8mm

Weight 310g

Protection level IP66

We are a professional manufacturer of research and development production and vehicle monitoring

Car video recorder car camera car usb camera car display usb camera

Please contact us by email : firecore1688@163.com

Shenzhen Firecore Technology Co., Ltd., has been established for more than 15 years, is a focus on vehicle video image surveillance products research and development, manufacturing, and sales of national high-tech enterprises. With a strong R & D team and its patented products, Firecore has been a strong supplier of commercial vehicle enterprises at home and abroad and will be committed to becoming a strong supplier of commercial vehicle enterprises around the world for a long time.

Professional and Product Diversity: Firecore not only manufactures and develops in-vehicle video surveillance products but also covers closed-circuit surveillance equipment such as CCTV cameras, as well as a series of cameras and surveillance video recorders designed for different vehicles (such as buses, school buses, trucks, and taxis). In addition, Firecore also provides advanced automotive safety products such as in-car wifi, 3G/4G/5G cameras, as well as reversing systems, displays, and rear-view systems, showing the diversity and professionalism of its products.

Technological Innovation: Firecore emphasizes "Innovation! Originality! High-end customization!" as part of its core competence. Therefore, we invest a lot of resources in scientific and technological research and innovation to provide products with unique and high-end performance.

R&d, Production, Sales, and Service Integration: Firecore integrates product R&D, production, sales, and service, forming an integrated business model. This model helps us better grasp the market demand, respond quickly to customer needs, and provide a full range of services.
